Product Description

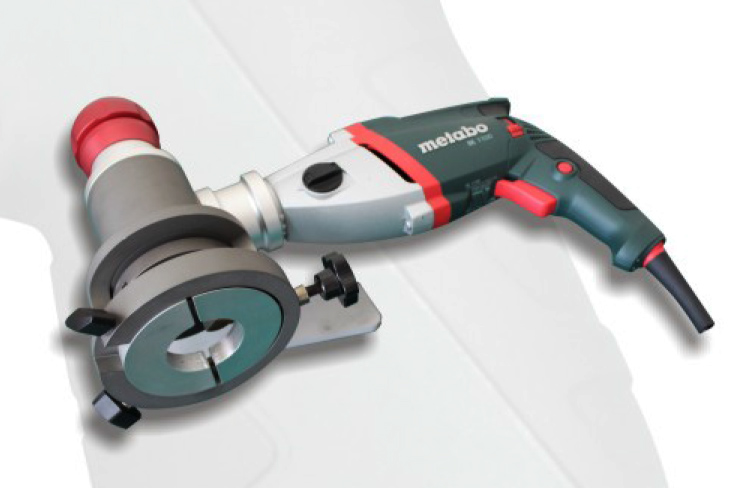

Tube Facing Machine

GF series of tube facing machine is ideal solution for tube end facing and squaring with excellent burr-free and flat finish. Its compact and lightweight design is easy to operate for welding preparation without heated affection zone, which is also ideal for orbital tube welding machine weld preparation.

There two power supplies for accumulator and mains. Also we provide clamp jaw and collet clamp to fix pipes.

Features:

Nice and clean finish for tube end.

Easy to operate and light to carry.

Precise feeding system for high standard.

Metabo motor industrial level provide longer service life.

Model	Working Range Tube OD	Tube Thickness	N.W	Motor
GF-1.0	3~25.4mm (1/8-1 inches)	Max 3mm	2.0 kg	1.1kw/14v or 220v/50Hz
GF-1.5	3~38.1mm (1/8-1.5 inches)	Max 4mm	2.5 kg	1.1kw/18v or 220v/50Hz
GF-2.0	3-50.8mm (1/4-2 inches)	Max 4mm	2.8 kg	1.1kw/18v or 220v/50Hz
GF-2.5	9~63.5mm (3/8-2.5 inches)	Max 4mm	3.5 kg	1.1kw/18v or 220v/50Hz
GF-3.0	12.7~76.2mm(1/2-3 inches)	Max 10mm	9.5kg	1.1kw/110V or 220v/50Hz
GF-4.5	12.7~115mm (1/2-4.5 inches)	Max 10mm	16.5 kg	1.1kw/110V or 220v/50Hz
