Product Description
Portable Pipe Beveling Machine

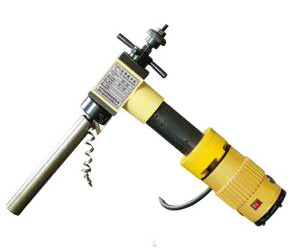

PB type ID locking pipe beveling machine is designed for portable use in pipe machining operations. It can be used efficiently by a single operator. It can be I.D. mounted inside pipe. Self-centering expandable mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations.
Electric & Pneumatic drive options
Features:
- Ideal and reliable solution to precisely square bevel for all types of metal pipes/tubes.
- More powerful to cut and bevel with higher efficiency.

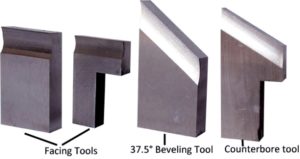

- It is able to bevel, face off, chamfering and counter bore, making all these weld prep operations quick and simple.
- Burr-free and smooth surface after cutting and beveling
- Easy to operate and carry.

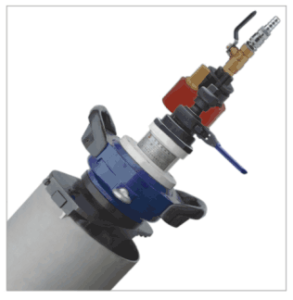

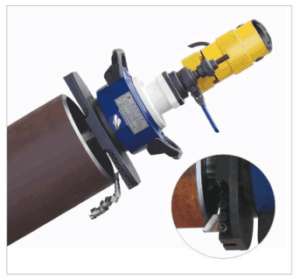

- It can be operated with a high-quality powerful pneumatic motor or a high-torque electric power drive.
Working Video
| Model | PB-30 | PB-80 | PB-120 | PB -150 | PB -250 | PB -350 |
| Power(kw) | 1.1 | 1.1 | 1.1 | 1.6 | 1.6 | 1.6 |
| Cutter Speed(RPM) | 0-60 | 0-60 | 0-55 | 0-55 | 0-30 | 0-15 |
| Stroke Length(mm) | 25 | 25 | 25 | 40 | 40 | 40 |
| Dimension(mm) | 330*110*420 | 330*110*420 | 300*110*530 | 300*190*540 | 370*250*560 | 430*320*730 |
| N.W(kg) | 8 | 11 | 18 | 24 | 33 | 42 |
| Ideal Working Range(ID-OD) | 18 – 30 | 28 – 80 | 40-120 | 65-125 | 80 – 250 | 150-325 |
| Pipe Thickness | ≤8 | ≤15 | ≤15 | ≤15 | ≤15 | ≤15 |
