Product Description

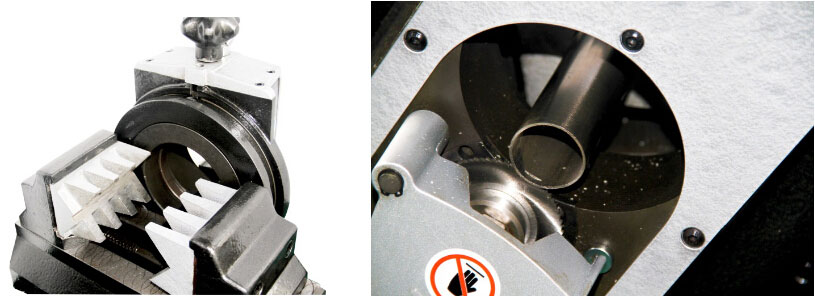

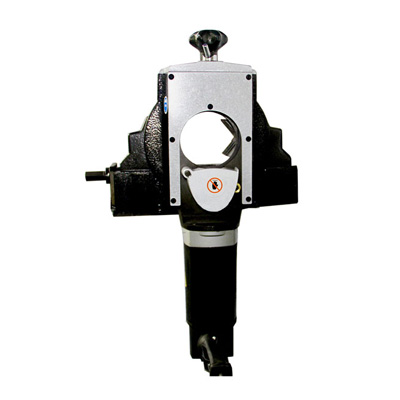

Orbital Pipe Saw Introduction
GFI Tool orbital pipe saw is ideal for most metal pipes with precision and square cut. Its widely applied in sanitary and clean piping, such as food&beverage, semiconductor, and bio pharmaceutical industry. All series orbital pipe saws and consumables are very affordable compared with George Fisher/Orbitalum, which is ideal for orbital tube welding machine weld preparation. Our saw blade can be replaced with Orbitalum and GF saw blades.
Main Features:
- Ideal and reliable solution to precisely square cut and bevel for all types of metal pipes/tubes.
- More powerful to cut and bevel with high efficiency.
- Easy to operate and carry.
- Deformation-free clamping system avoids pipe deformation.
- Burr-free and smooth surface after finish cutting and beveling.
Specification of orbital pipe saw
| Model | Pipe OD | Wall | Motor | RPM | N.W |
| GFL-3 | 6-76mm(1/4-3 inches) | 0.5-5mm | 1.1kw | 30-150 | 25kg |
| GFI-4 | 15-120mm(3/4.8inches) | 1-8mm | 1.8kw | 150-250 | 78kg |
| GFI-6 | 85-182mm(3.4-7.2inches) | 1-10mm | 1.8kw | 150-250 | 90kg |
| GFI-8 | 125-230mm(-9.2inches) | 1-10mm | 1.8kw | 150-250 | 106kg |
| GFI-12 | 215-325mm(8-12.5inches) | 1-10mm | 1.8kw | 150-250 | 127kg |
PS: GFI-4E,GFI-6E,GFI-8E,GFI-12E is based on manual models as automatic type
Demo Video For Orbital Pipe Saw
